Lined Sight Flow Indicator

Description: Lined S.G. iron cast body F to F & flanges drilling as per customers requirement.
Sizes Available: 25 NB to 300 NB
Lining Materials PFA / FEP

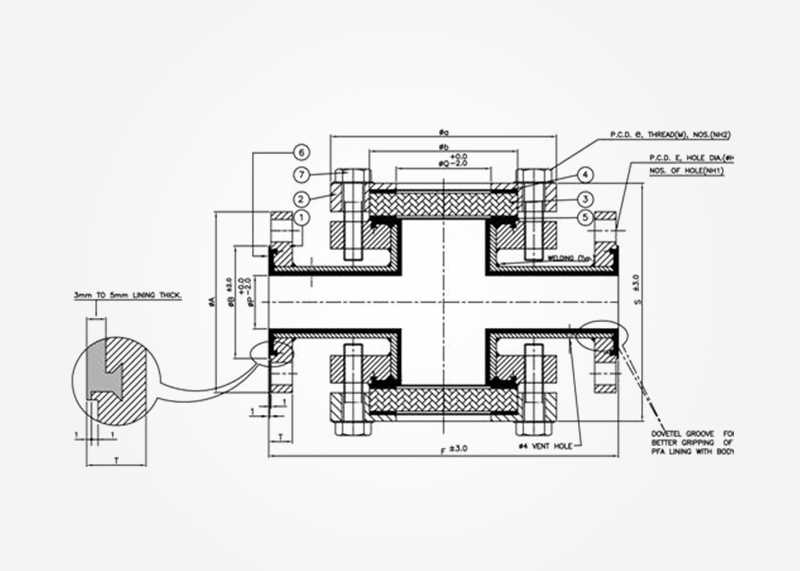

MATERIAL SPECIFICATION

FAB. BODY PIPE CARBON STEEL ASTM A106 Gr. B SCH-40
WINDOW FLANG ASTM A-105 OR IS:2062, Gr.A
GLASS BOROSILICATE TOUGHENED GLASS
(MAKE : DIAMOND GLASS WORKS)
1- Ø125mm * 19mm Thick for 25NB
2- Ø125mm * 19mm Thick for 40,50, & 80NB
3- Ø150mm * 19mm Thick for 100NB
4- Ø210mm * 19mm Thick for 150NB
5- Ø270mm * 10mm Thick for 200NB
Envelope Gasket PTFE WITH 2mm THICK. ACID RESISTANT CAF INSERT
LINING PFA CONFORMING TO ASTM D-3307, TYPE-2
FASTENERS IS:1367 Gr.4.6
